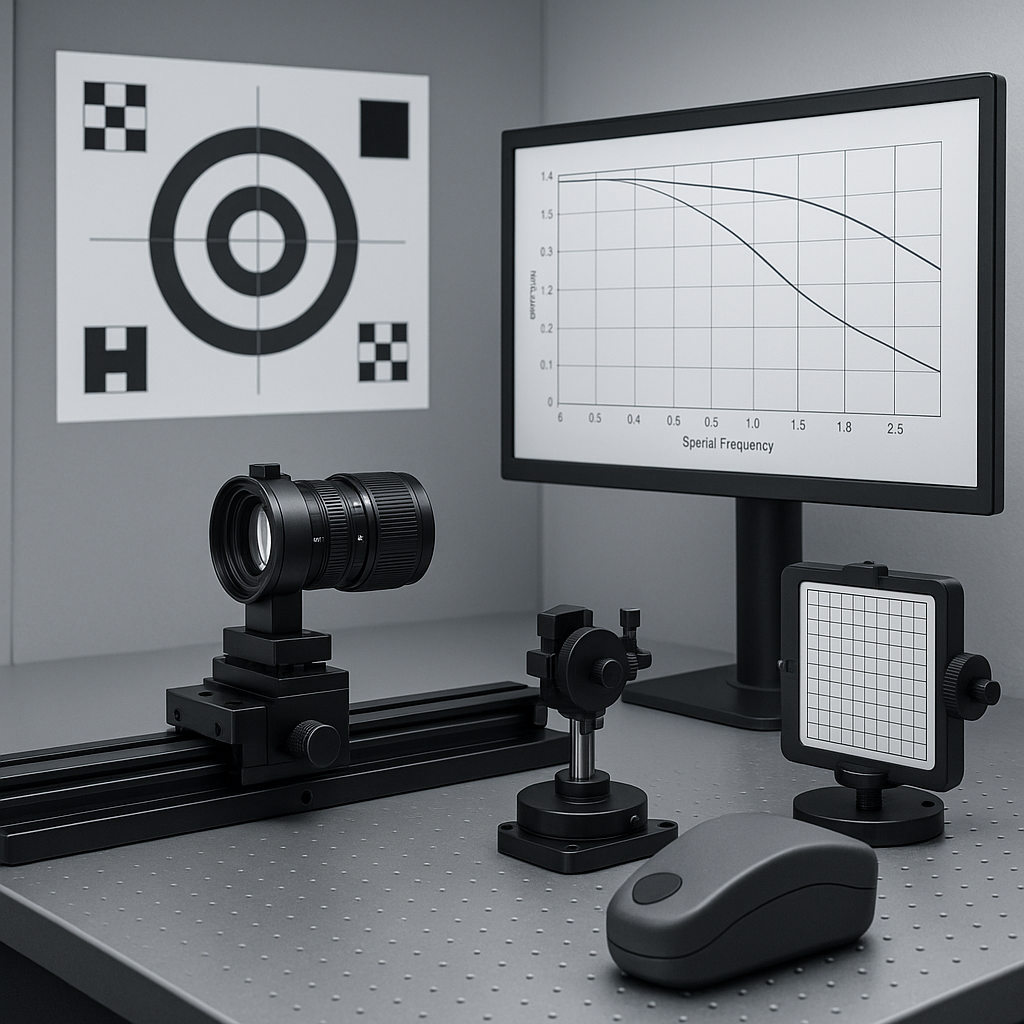

Optical Lens Quality Control: MTF, Distortion, and Centering
A buyer-focused guide to converting lens drawings and performance targets into repeatable MTF, distortion, centering, coating, cosmetic, and reliability checks.

Key Takeaways
Optical Lens Quality Control is defensible only when each requirement is tied to a defined test condition, measurement method, reported value, tolerance, and pass/fail limit.
- Approve MTF at specified field positions, frequencies, wavelengths, aperture, focus state, and object distance—not from a center-field result alone.
- Measure distortion and focal length using the same conjugate, sensor format, working distance, and reference geometry expected in the application.
- Treat optical centering, mechanical datum alignment, and flange or back focal distance as related but separately reportable characteristics.
- Set coating and cosmetic criteria by spectral band, surface zone, illumination, magnification, and allowable defect class.
- Maintain batch control through an agreed sampling plan, calibrated equipment, traceable reports, golden-sample controls, and formal change notification.
The Short Answer
Lens quality is verified by converting design requirements into repeatable measurements with documented pass/fail limits. A complete plan normally covers on- and off-axis MTF, focal length, field of view, distortion, centering, focal distance, coating response, cosmetic condition, mechanical fit, and post-environment performance. The buyer and supplier must also agree on wavelength, aperture, focus method, conjugate distance, field positions, equipment, sampling, and reporting. Without those conditions, two valid test setups can produce results that aren’t directly comparable.
What Optical Lens Quality Control Verifies
Optical Lens Quality Control connects a drawing or system requirement to evidence that production lenses meet an agreed limit. That connection matters because a nominal focal length, an MTF target, or an approved image can be interpreted differently unless the test configuration is frozen.
From drawing requirements to measurable acceptance criteria
Each controlled characteristic needs five elements: the test condition, measurement method, reported value, tolerance, and acceptance limit. “Low distortion” is not an acceptance criterion. A usable requirement identifies the distortion definition, field coordinates, wavelength or spectral band, conjugate, focus condition, and permitted result.
Why sample approval does not ensure batch consistency
An approved sample establishes a reference, not process control. Production lenses can vary in imaging quality, and MTF is one method used to evaluate that variation, according to TRIOPTICS image-quality guidance. Batch assurance also needs sampling rules, equipment controls, records, and a response to nonconforming results.
Optical, mechanical, cosmetic, and reliability checks
Optical tests cover image transfer, focal properties, distortion, and spectral response. Mechanical inspection covers datum relationships, mounting interfaces, retention, and fit. Cosmetic inspection addresses visible defects under agreed viewing conditions. Reliability testing asks whether those results remain acceptable after relevant environmental exposure.
Buyer guidance below is an engineering-procurement recommendation rather than a universal inspection standard. The final plan must match the drawing, application risk, and supplier capability.
Optical Lens Inspection Methods: Test Method and Acceptance-Criteria Table
| Quality characteristic | What the requirement should define | Typical inspection method | Reportable result | Acceptance-criteria guidance |
|---|---|---|---|---|
| MTF | Frequency, field, wavelength, aperture, conjugate, focus | Target projection, image analysis, or validated wavefront-derived method | Sagittal/tangential MTF by frequency and field | Set minimums at named test points |
| Effective focal length and FOV | Conjugate, wavelength, reference plane, sensor format | Optical bench or calibrated image geometry | EFL and angular or object-space FOV | Control each parameter separately |
| Distortion | Distortion definition, field points, reference mapping | Calibrated grid or target-coordinate analysis | Distortion by field position | Limit peak and/or point values |
| Centering, decenter, tilt | Optical axis, mechanical datums, element or assembly level | Centering instrument, rotary measurement, image-based alignment | Decenter, tilt, runout, or asymmetry | Match metric to assembly function |
| Back or flange focal distance | Reference surface, focus criterion, wavelength | Bench focus measurement against mechanical datum | Distance at stated focus condition | Include datum and temperature condition |
| Coating response | Band, angle, polarization if relevant, witness-part policy | Spectrophotometric transmission or reflectance measurement | Spectrum or values at named wavelengths | Use band limits, not coating color |
| Cosmetic quality | Zones, defect classes, lighting, magnification | Controlled visual inspection | Defect type, size class, zone, disposition | Avoid undefined “commercial quality” |
| Mechanical fit | Dimensions, threads, torque or gauge condition | Metrology and functional gauges | Dimension, gauge result, fit status | Tie limits to drawing datums |
| Environmental reliability | Exposure profile and pre/post checks | Environmental exposure followed by repeat inspection | Shift in MTF, focus, coating, sealing, or fit | Set post-test limits and failure rules |
Using the table during RFQ, first article, and incoming inspection
At RFQ, use the table to expose requirements that lack a test method. First-article inspection should establish actual values and setup details, not merely “pass.” Incoming inspection can then apply the agreed sampling plan and compare production with both specification limits and the approved reference.
What belongs in the inspection report
Record part and lot identity, drawing revision, equipment identification, calibration status, fixture, environmental condition where relevant, wavelength, aperture, focus method, conjugate, field coordinates, raw or plotted results, acceptance limit, disposition, inspector, and date. Photographs help with cosmetic findings but do not replace defined defect criteria.
Modulation Transfer Function (MTF) Testing
How is MTF measured for optical lenses?
MTF describes how an optical system transfers contrast from object to image. It is the ratio of image modulation to object modulation at a specified spatial frequency, as explained in this MTF measurement overview. For example, object modulation of 0.8 and image modulation of 0.4 produce an MTF of 0.5 under that stated condition.
Direct testing can image an illuminated target and analyze the resulting contrast. Wavefront-based equipment can instead derive MTF from measured phase and amplitude. The chosen method must be validated for the lens type and acceptance decision.
Selecting frequency, field, wavelength, aperture, and focus
A supplier workflow described by Shanghai Optics distinguishes finite- and infinite-conjugate lenses and includes pupil centering, image-plane focus, wavelength selection, spatial frequency, and sagittal/tangential reporting. Those variables belong in the purchase specification.
Frequency selection should also reflect the detector and task. The relationship among sensor sampling, object-space detail, and machine vision lens MTF is more useful than a high-frequency number chosen without reference to the camera.
Comparing measurements with requirements and samples
Compare like with like: identical field coordinate, meridian, focus rule, aperture, spectrum, conjugate, and frequency. A center-field curve cannot qualify an edge-field requirement. An approved sample may remain a useful process reference, but the drawing limit should control disposition unless the contract explicitly says otherwise.
Optical Distortion Measurement and Focal Length Verification
How to measure lens distortion across the field
Image a calibrated grid or known target, locate measured image points, and compare them with the selected ideal mapping. Report the distortion definition and value at agreed field positions. Changing the ideal projection or reference magnification can change the reported result, so “percent distortion” without a definition is incomplete.
Verifying effective focal length, FOV, and magnification
TRIOPTICS lists effective focal length, distortion, field of view, flange focal length, field curvature, and MTF among measurable image-quality parameters. For purchasing, control the parameters that affect fit and image geometry rather than assuming one guarantees the others.
Focal length verification should use the intended conjugate or a defined bench equivalent. In finite-conjugate inspection, connect the result to sensor format and working distance; the selection logic is outlined in this guide to machine vision lens focal length.
Setup variables that alter reported results
Focus optimization rule, target alignment, object distance, wavelength, aperture, reference plane, image sampling, and field-coordinate definition can all affect comparability. The defensible response is not to assume the effect is negligible, but to freeze the setup and run correlation studies before changing equipment or software.
Lens Centering Tolerance and Mechanical Alignment
What the tolerance controls
A lens centering tolerance should identify the controlled axis and datum. Element centering relative to an optical axis is not automatically equivalent to barrel runout, mount concentricity, or sensor alignment. If the functional requirement is image quality, pair the mechanical limit with an optical performance check.
Decenter, tilt, and axial spacing
For specification purposes, decenter is a lateral displacement, tilt is an angular misalignment, and axial spacing is separation along the reference axis. Engineering inference: because these are different degrees of freedom, one runout measurement cannot be assumed to bound all three without a demonstrated correlation.
Element and barrel inspection
Possible approaches include element-level centering measurement, rotary-axis checks, mechanical metrology, transmitted-image analysis, and final-assembly MTF at multiple field positions. Choose the method that observes the failure mode. A tight component limit adds little value if final assembly, thread seating, or sensor interface dominates alignment.
Coating Performance Testing and Cosmetic Inspection
Spectral transmission or reflectance
State the operating band, required transmission or reflectance, incidence angle, and polarization condition when relevant. A single visible inspection cannot establish spectral performance. Visible, NIR, and SWIR lens coatings may require different wavelength-dependent verification.
Uniformity, adhesion concerns, and handling damage
Spectral measurement verifies optical response at the measured area or witness sample; visual inspection finds stains, scratches, edge defects, or apparent nonuniformity. Neither result automatically proves durability. If adhesion or abrasion is a product risk, define a separate qualified test and the allowed post-test change.
Cosmetic zones and inspection conditions
Split surfaces into functional zones and define illumination geometry, background, viewing distance or magnification, inspection time if controlled, and defect classification. Cosmetic rules should distinguish appearance-only findings from defects that can affect imaging or coating integrity.
Environmental Reliability Testing for Production Lenses
Optical stability after exposure
Measure agreed baseline characteristics, apply the environmental profile, allow any specified recovery, and repeat the same measurements. TRIOPTICS describes equipment capable of tracking parameters including MTF, focal properties, distortion, and depth of focus over temperature; that is an equipment capability, not a universal test range.
Retention, sealing, and coating risks
Engineering inference: temperature, humidity, shock, or vibration can only be assessed meaningfully when the exposure and failure criteria reflect the assembly and operating environment. Post-test inspection may cover focus shift, MTF, looseness, leakage evidence, coating change, cosmetic damage, and thread or mount function.
Matching qualification to operating conditions
Avoid copying an unrelated environmental profile. Derive exposures from transport, storage, operation, duty cycle, enclosure, and mounting. Systems working outside the visible band may also need material- and sealing-specific review; see the SWIR environmental design considerations for an application example.
How to Set Lens Quality Acceptance Criteria for Suppliers
Separate targets, tolerances, and acceptance limits
A design target is the intended nominal performance. A production tolerance defines permitted variation in a parameter. An acceptance limit is the contractual pass/fail boundary applied using an agreed method. Optical Lens Quality Control becomes contentious when these three are treated as interchangeable.
Review optical lens tolerances against manufacturing capability and inspection cost. A narrow limit may be justified by system risk, but it should not be copied from a design model without measurement uncertainty and production variation being considered.
Equipment, setup, sampling, and reports
Name the method or approved equivalent, fixture, software revision where material, calibration expectations, retest rule, sampling unit, sample size, lot definition, and record-retention period. For destructive or time-intensive tests, qualification or periodic sampling may be more practical than unit inspection.
Deviations, rework, and batch disposition
Set who can approve a deviation, what evidence is required, whether rework triggers complete or targeted retesting, and how mixed lots are controlled. A result near a limit also needs a predetermined retest rule; repeated measurement until a passing value appears is not a defensible disposition process.
Buyer Checklist for Sample Approval and Ongoing Batch Control
Before first-article approval
- Freeze drawing and specification revisions.
- Identify optical and mechanical datums.
- Agree on test equipment, conditions, frequencies, fields, and focus rule.
- Record actual results rather than pass/fail alone.
- Resolve differences between supplier and buyer measurement systems.
- Define packaging, labeling, lot traceability, and change control.
Capture these items with the broader custom lens requirements before quotation, when test cost and feasibility can still be addressed.
Records for each production batch
Request the certificate or inspection report required by the control plan, lot identity, quantities inspected, measured results for controlled characteristics, nonconformance and rework history, and confirmation of the applicable revision. Not every lot needs every qualification test, but every reported pass should trace to a defined requirement.
Events that trigger repeat testing
Predetermine triggers such as optical-material substitution, coating-stack change, tooling replacement, assembly-process change, test-equipment change, manufacturing-site transfer, approved sub-supplier change, or a recurring field or incoming-inspection failure. The scope of requalification should follow the affected risk, not default automatically to either no testing or a complete program.
For a review, submit the optical drawing, performance requirements, proposed inspection conditions, expected production volume, and known system constraints. SUPERIOR can help translate MTF, distortion, centering, coating, cosmetic, and environmental requirements into a measurable Optical Lens Quality Control and supplier-approval plan.
Frequently Asked Questions
What is the difference between an optical design target and a production acceptance limit?
A design target is the nominal performance sought by the optical model. A production tolerance permits controlled variation in components or assembly. The acceptance limit is the contractual pass/fail boundary measured under agreed conditions. It should consider application needs, manufacturability, test uncertainty, and the disposition process.
Should MTF acceptance criteria be specified at the image center only or across the full field?
Use center and relevant off-axis field positions whenever the application uses those image areas. Center-only testing can miss asymmetric or edge-field performance. The specification should identify each field coordinate, sagittal or tangential orientation where applicable, spatial frequency, wavelength, aperture, conjugate, and focus rule.
What information should be included in an optical lens inspection report?
Include part number, serial or lot identity, drawing revision, equipment and calibration status, fixture, test conditions, field coordinates, wavelength, aperture, focus method, measured values, acceptance limits, disposition, inspector, and date. Add plots, raw data, or defect photographs when required by the control plan.
How can buyers make sure a production batch matches an approved lens sample?
Freeze the approved configuration and test method, retain an identified reference sample, and apply a documented sampling plan to production lots. Compare measured results with contractual limits as well as the reference. Require lot traceability, nonconformance records, calibrated equipment, and advance notification of material, process, tooling, or site changes.
Which lens requirements should be verified on every unit versus by lot sampling?
Base inspection frequency on failure risk, test cost, process capability, and whether the test is destructive. Safety- or fit-related characteristics may justify unit checks, while stable spectral or environmental characteristics may use lot, periodic, or qualification testing. Record the rationale and tighten sampling when process evidence deteriorates.
